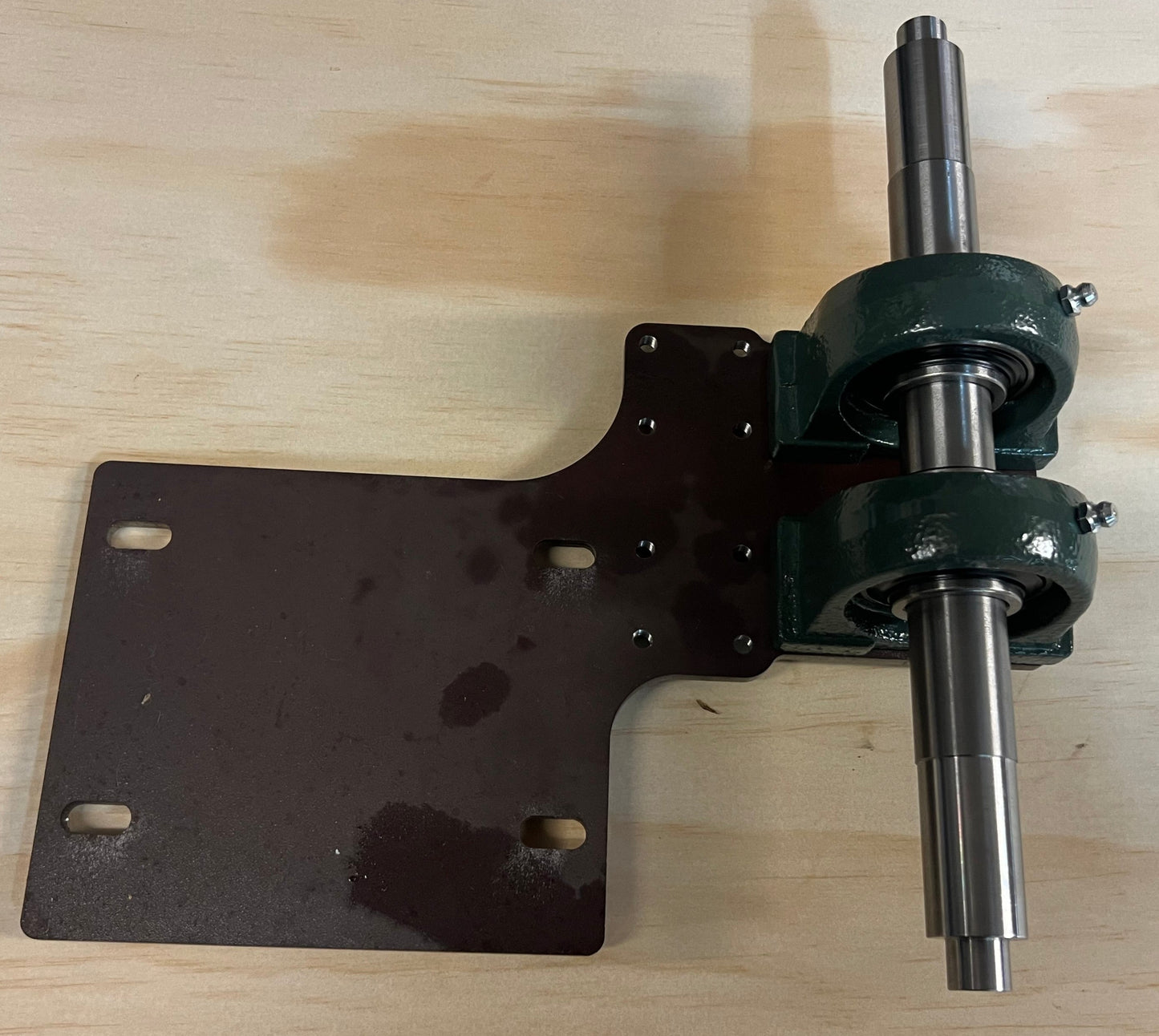

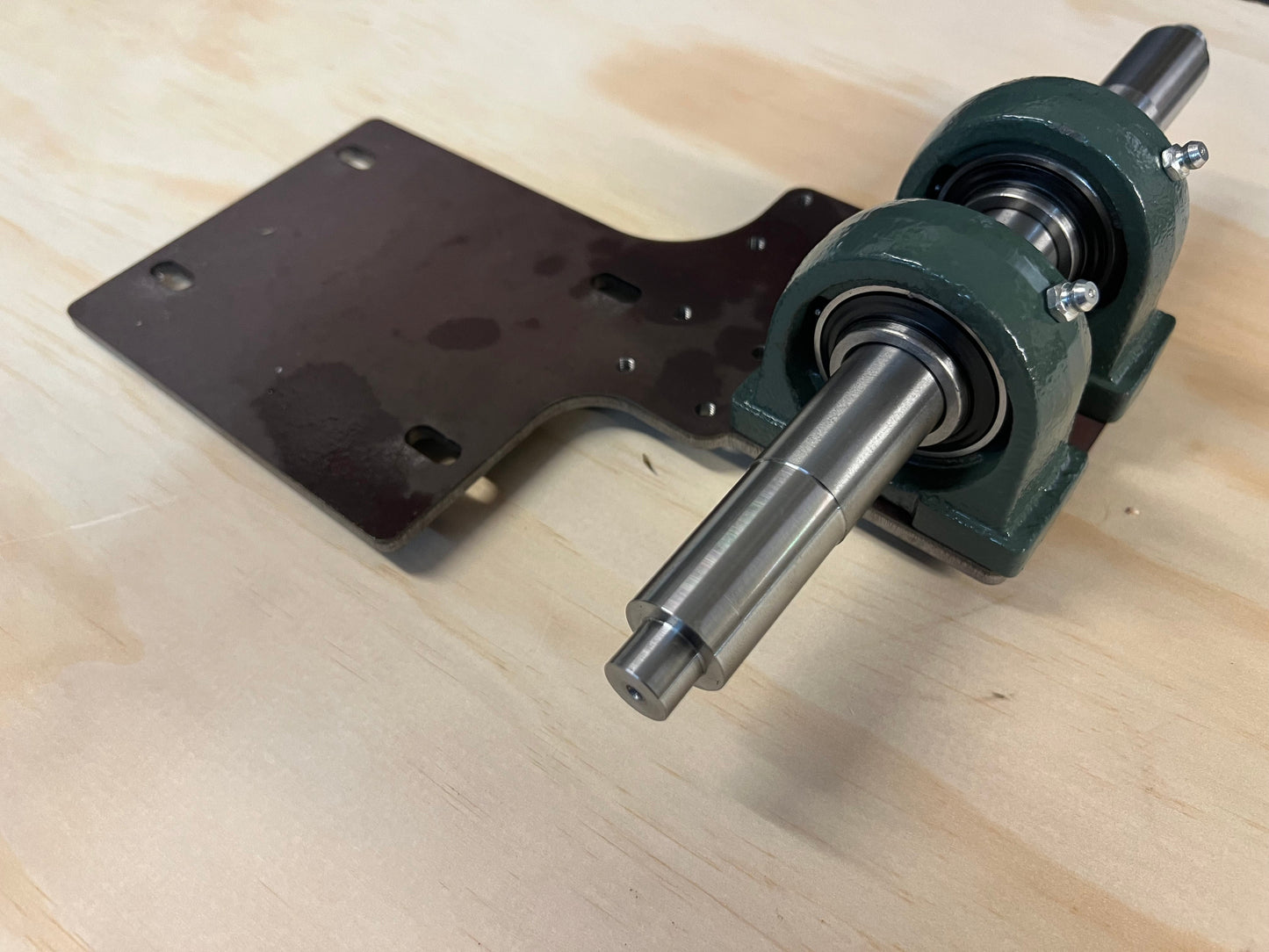

Motor Mounting 7.25" Gauge (500, 650, 800, 1000)

This unit comes with motor brackets to suit the MY1020 series Motors of the following sizes

24V 500 ,650

36V 800

48V 1000

The axle is made from 4140 center-less ground bar and is our standard 280 long.

It is fitted to the bearing housings and wheel registered are machined for 24mm bore wheels.

Bearing journals are available in 20mm  suitable for 6402 bearings.

Bearing journals are also available in 15mm  suitable for 6202 and 6802 bearings.

Comes assembled with all high tensile fasteners fitted.
