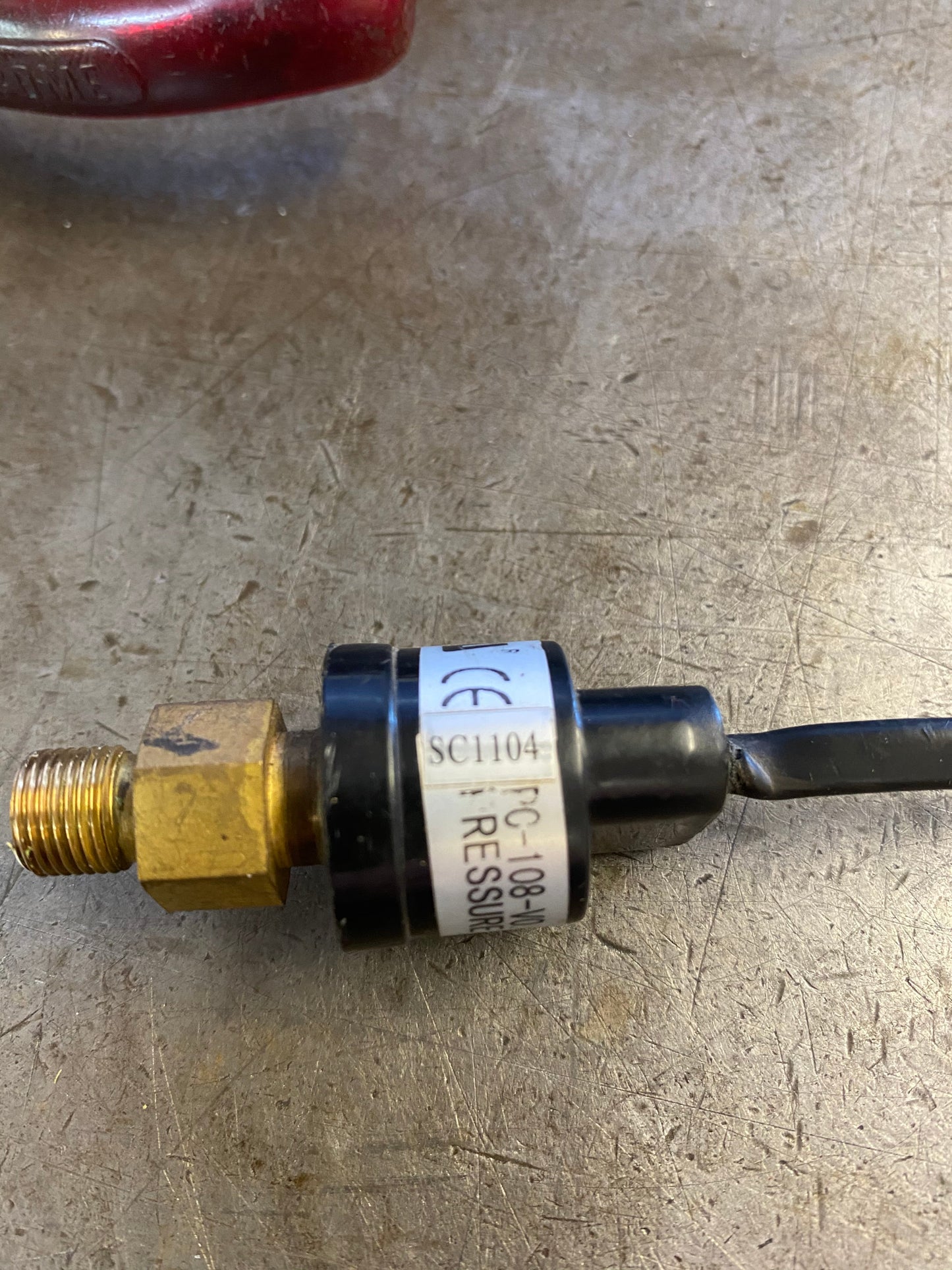

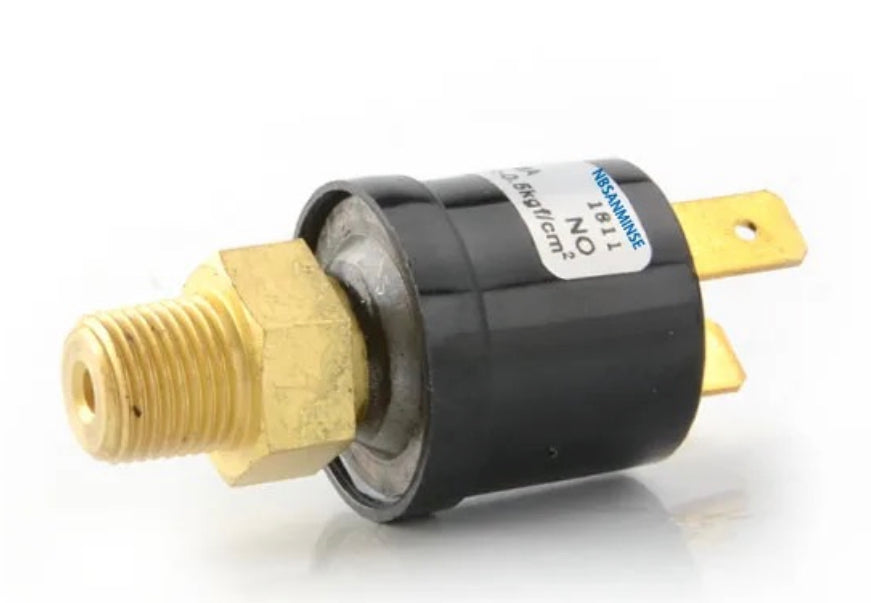

Air Pressure Switch Fixed Settings

This item is useful to control the air pressure level in your air tank.

Supplied with fixed switch points it is not adjustable.

ON 0.5MPA    73 Psi

OFF 0.7MPA  102 Psi

Comes standard with 1/4” spade terminals and 1/8 BSP mounting.

We recommend you have this switch trip the coil of a relay to operate your pumps which are high amperage to give life to the contacts in this switch.

The air compressors can have a higher amp rating than this switch capacity of only 6 amps.
